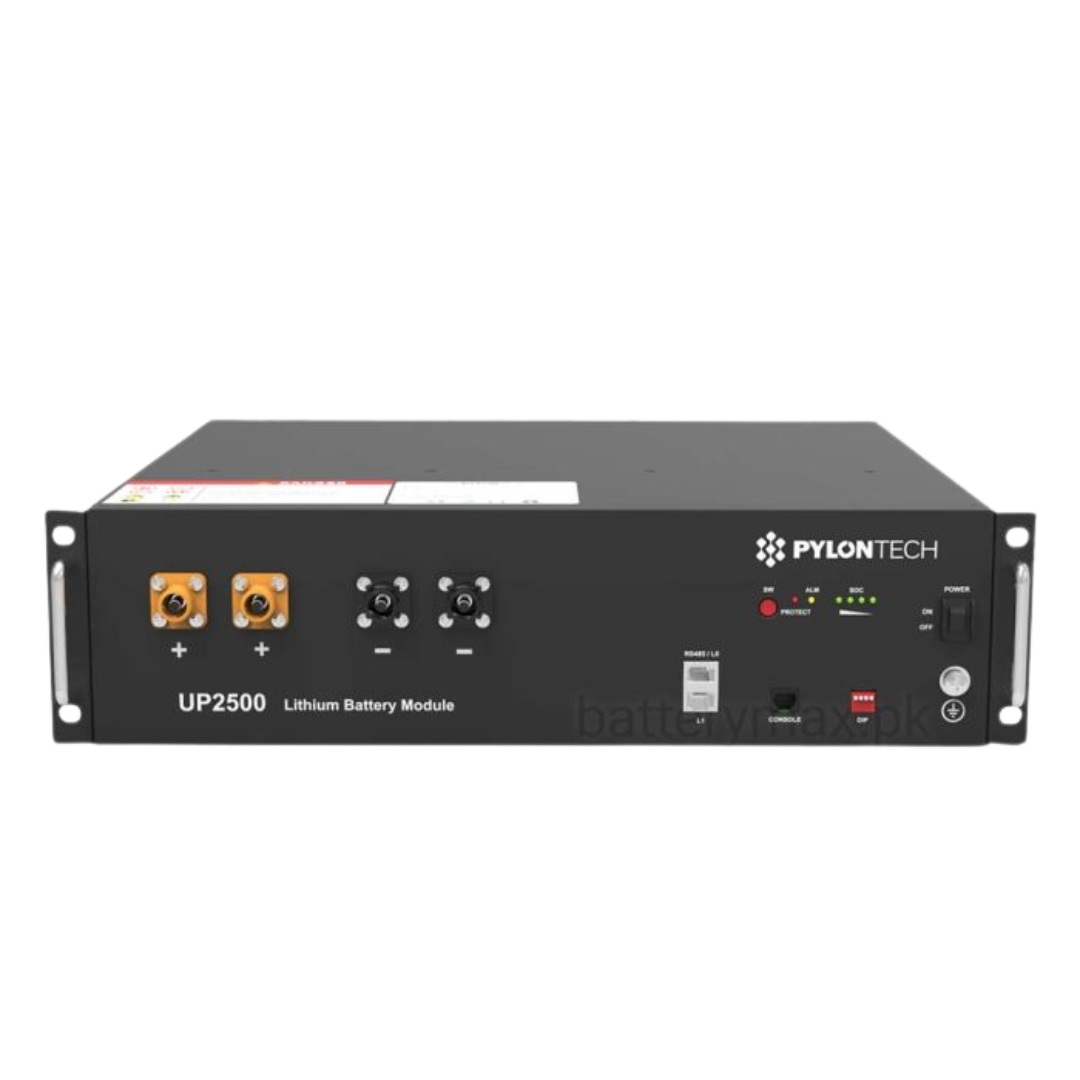

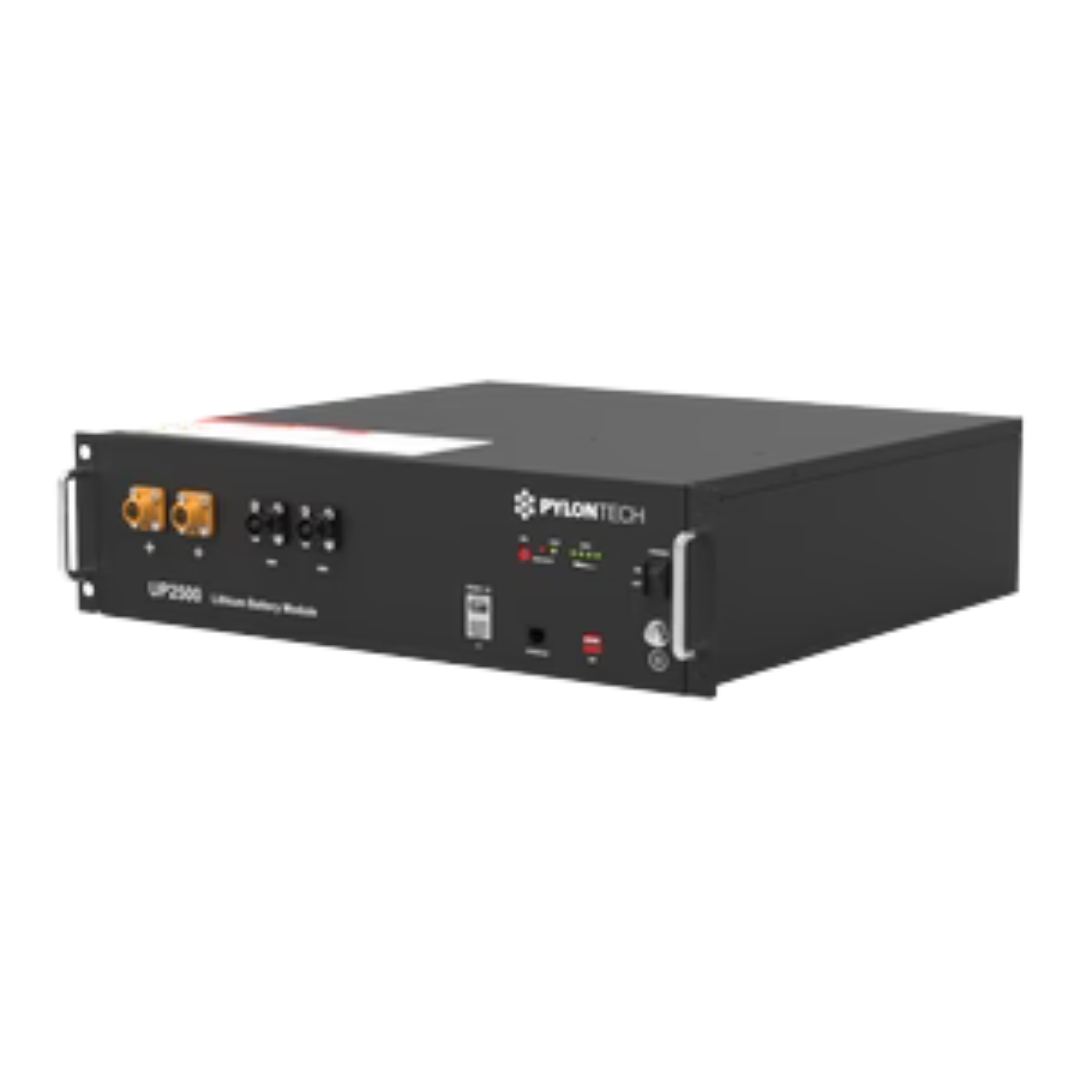

PYLOTECH UF 2500

Description

🔋 Pylontech UP2500 – Key Specifications

• Battery Type: Lithium Iron Phosphate (LiFePO₄)

• Nominal Voltage: 25.6V

• Nominal Capacity: 110Ah (2.84 kWh)

• Usable Capacity: 2.55 kWh (approximately 90% Depth of Discharge)

• Cycle Life: Over 6,000 cycles at 90% DoD

• Design Life: Up to 10 years

• Maximum Charge/Discharge Current: 85A

• Operating Temperature: 0°C to 55°C

• Storage Temperature: -10°C to 60°C

• Dimensions: Approximately 442 x 420 x 120 mm

• Weight: Around 26.5 kg

• Protection Rating: IP20

• Communication Interfaces: RS485 and CAN

• Certifications: IEC62619, CE, RoHS, UN38.3
