CRWON 6KW
🔋 Key Features
- 6,000W Continuous Power Output
- Hybrid Functionality
- High Surge Capacity
- MPPT Solar Charging Technology
- Compact & Durable Design
Description

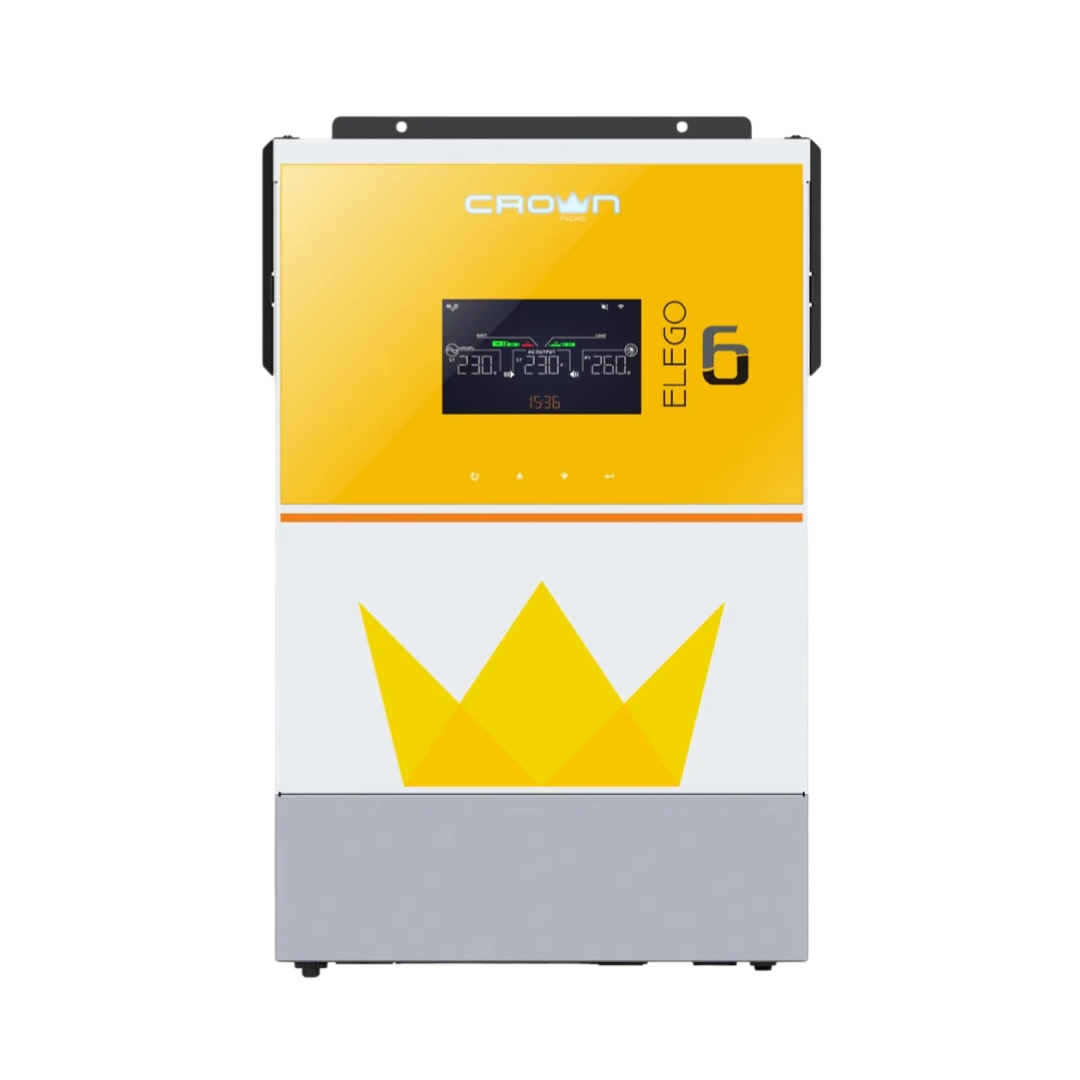

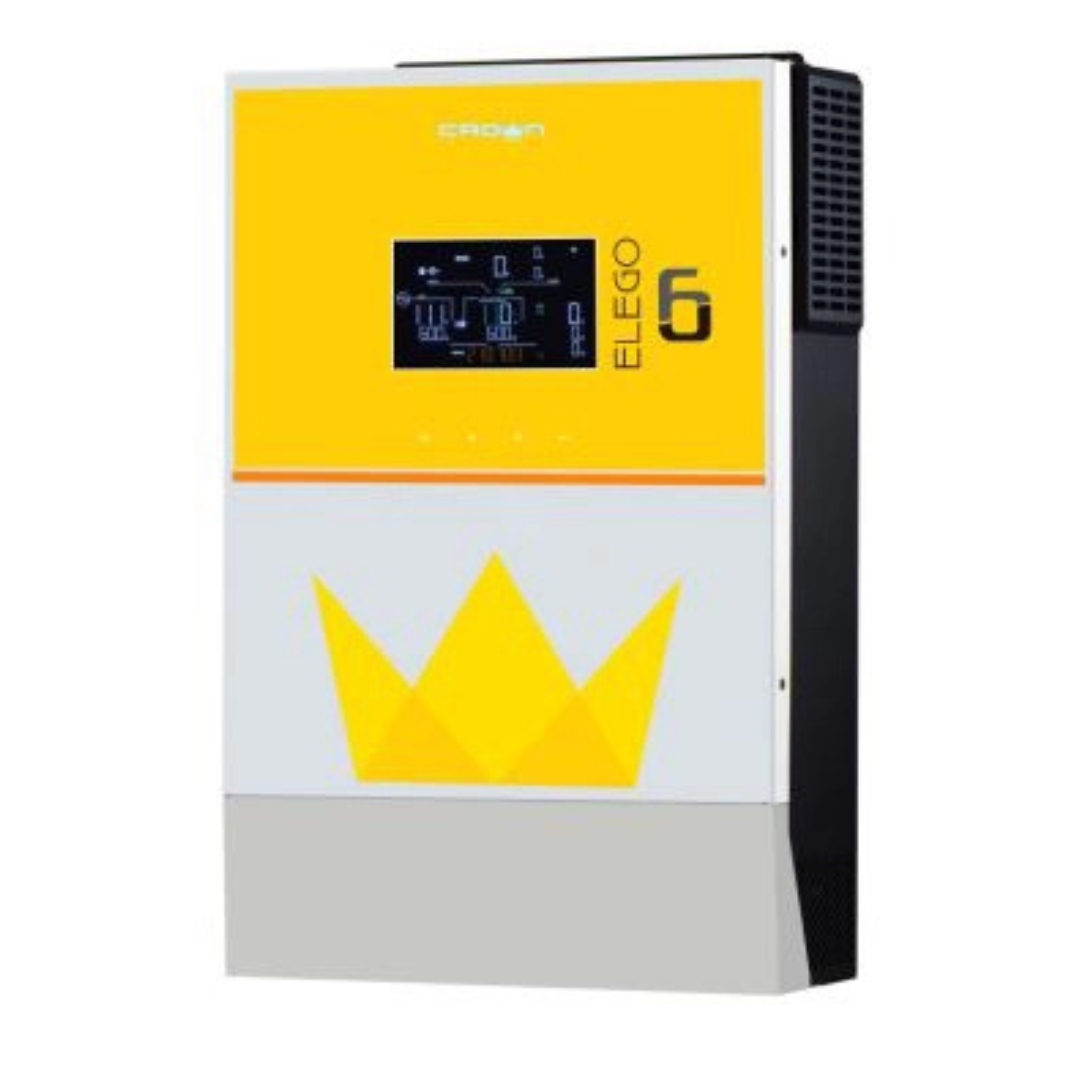

The Crown Elego 6KW Hybrid Solar Inverter is a reliable and efficient energy solution, ideal for enhancing the performance and reliability of your solar power system. Its hybrid functionality, robust protection features, and smart monitoring capabilities make it a valuable addition to any solar installation.
If you need further assistance in selecting compatible batteries or have questions about installation and compatibility, feel free to ask!
🔧 Key Specifications
-
Rated Output Power: 6,000 W (6 kW)
-
Maximum PV Input Power: 7,000 W
-
PV Input Voltage Range (MPPT): 120 VDC – 430 VDC
-
Maximum DC Voltage: 500 VDC
-
Start-up Voltage: 130 VDC
-
Initial Feeding Voltage: 150 VDC
-
Number of MPPT Trackers: 1
-
Maximum Input Current: 27 A
-
Output Voltage: 220/230/240 VAC
-
Output Waveform: Pure Sine Wave
-
Surge Power: 12,000 VA
-
Battery Voltage: 48 VDC
-
Maximum Charging Power: 6,000 W
-
Communication Interfaces: RS485, CAN, USB, and built-in WiFi for mobile monitoring
-
Display: 5" LCD touch screen
-
Parallel Operation: Supports up to 9 units
-
Protection Rating: IP21 (suitable for indoor installations)
-
Operating Temperature Range: 0°C to 50°C
-
Dimensions: Approximately 120 mm × 295 mm × 468 mm
-
Weight: Approx. 12 kg
