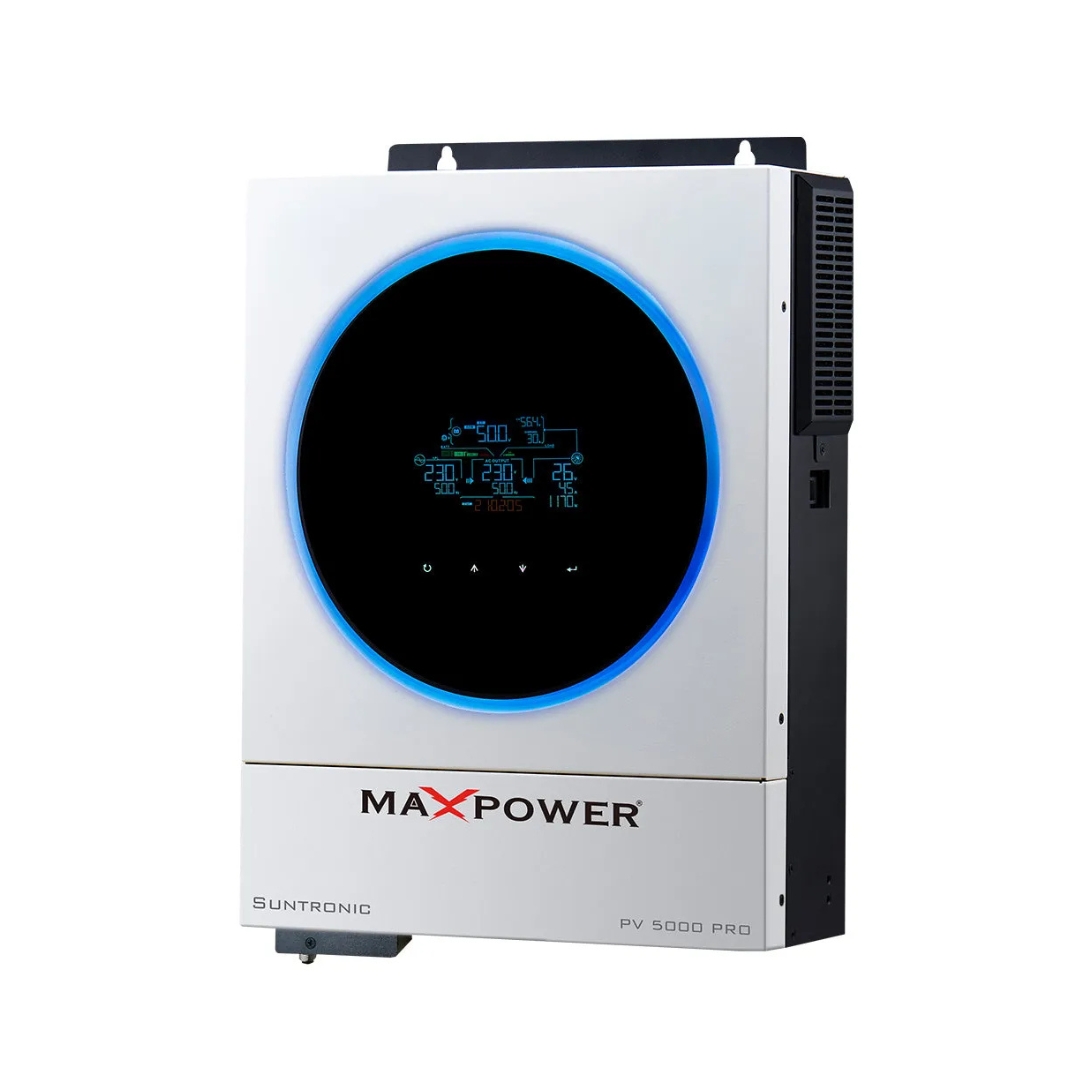

MAXPOWER 6KW
🔑 Key Features
- Hybrid Operation
- Advanced MPPT Technology
- Pure Sine Wave Output
- Protection & Safety
- Compact & Durable Design
Description
The MaxPower Suntronic 6kW Hybrid Inverter is a versatile solution designed for both residential and commercial solar energy systems. It supports integration with solar panels, batteries, and the grid, ensuring reliable energy availability
🔧 Key Specifications
-
Rated Power: 6,000 W
-
Maximum PV Input Power: 6,500 W
-
PV Input Voltage Range: 120 VDC – 450 VDC
-
Maximum PV Array Open Circuit Voltage: 450 VDC
-
Number of MPPT Trackers: 1
-
Maximum PV Input Current: 27 A
-
Battery Voltage: 48 VDC
-
Nominal Output Voltage: 220/230/240 VAC
-
Output Voltage Range: 184 VAC – 264.5 VAC
-
Grid Frequency Range: 50 Hz / 60 Hz
-
Efficiency (DC to AC): Up to 96%
-
Surge Power: 6,500 VA
-
Waveform: Pure Sine Wave
-
Operating Temperature Range: -10°C to 50°C
-
Dimensions: Approximately 468 mm × 295 mm × 140 mm
-
Weight: Approx. 12 kg
-
Protection Rating: IP21 (suitable for indoor installations)
