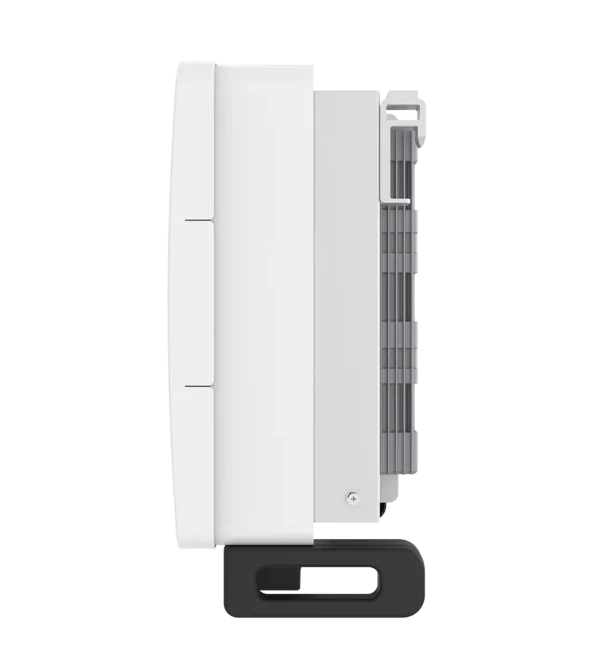

SOLIS ( HYBRID ) 15 KW

🔧 Key Specifications

• Rated AC Output Power: 15,000 W

• Maximum PV Input Power: 24,000 W

• MPPT Voltage Range: 200–850 V

• Number of MPPT Trackers: 2

• Maximum Input Voltage: 1,000 V

• Maximum DC Input Current: 52 A

• Battery Voltage Range: 40–60 V (48V nominal)

• Maximum Charge/Discharge Current: 190 A

• Surge Power Backup: 200% for 10 seconds

• Efficiency: Up to 98.4%

• Protection Rating: IP65 (suitable for outdoor installations)

• Dimensions: Approximately 530 mm × 700 mm × 356.5 mm

• Weight: Approximately 58.2 kg

• Operating Temperature Range: -40°C to +60°C

• Communication Interfaces: RS485, CAN, optional Wi-Fi, GPRS, LAN
