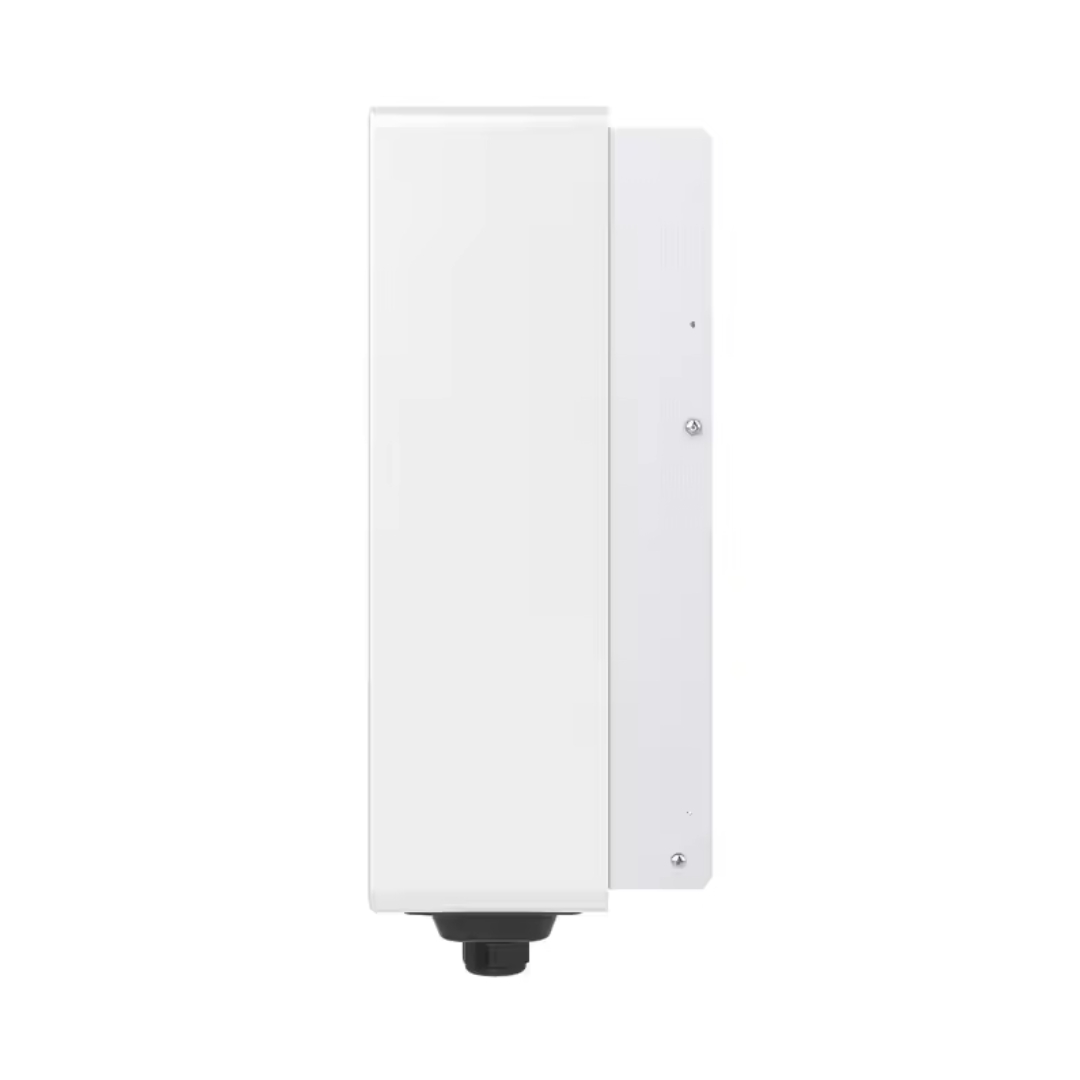

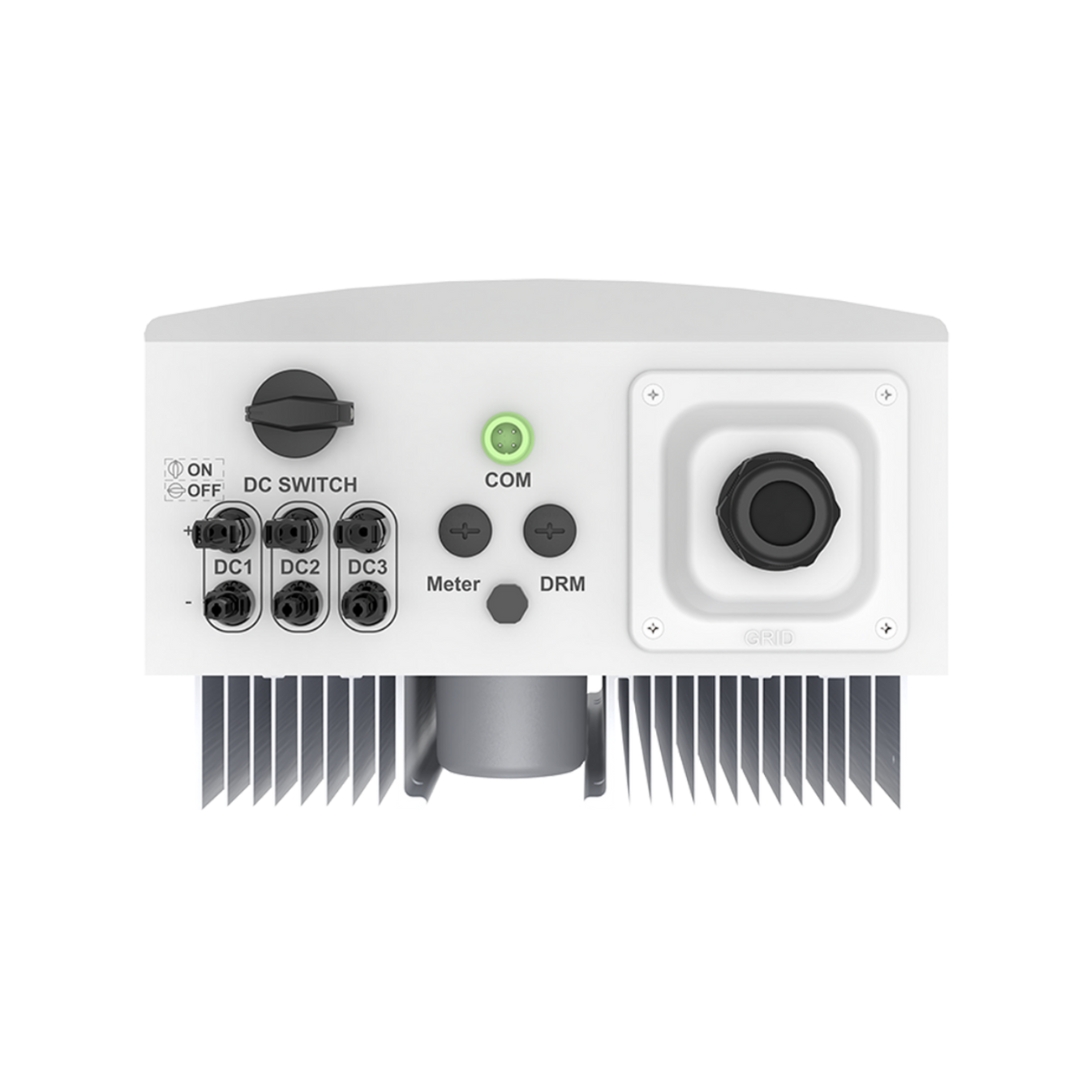

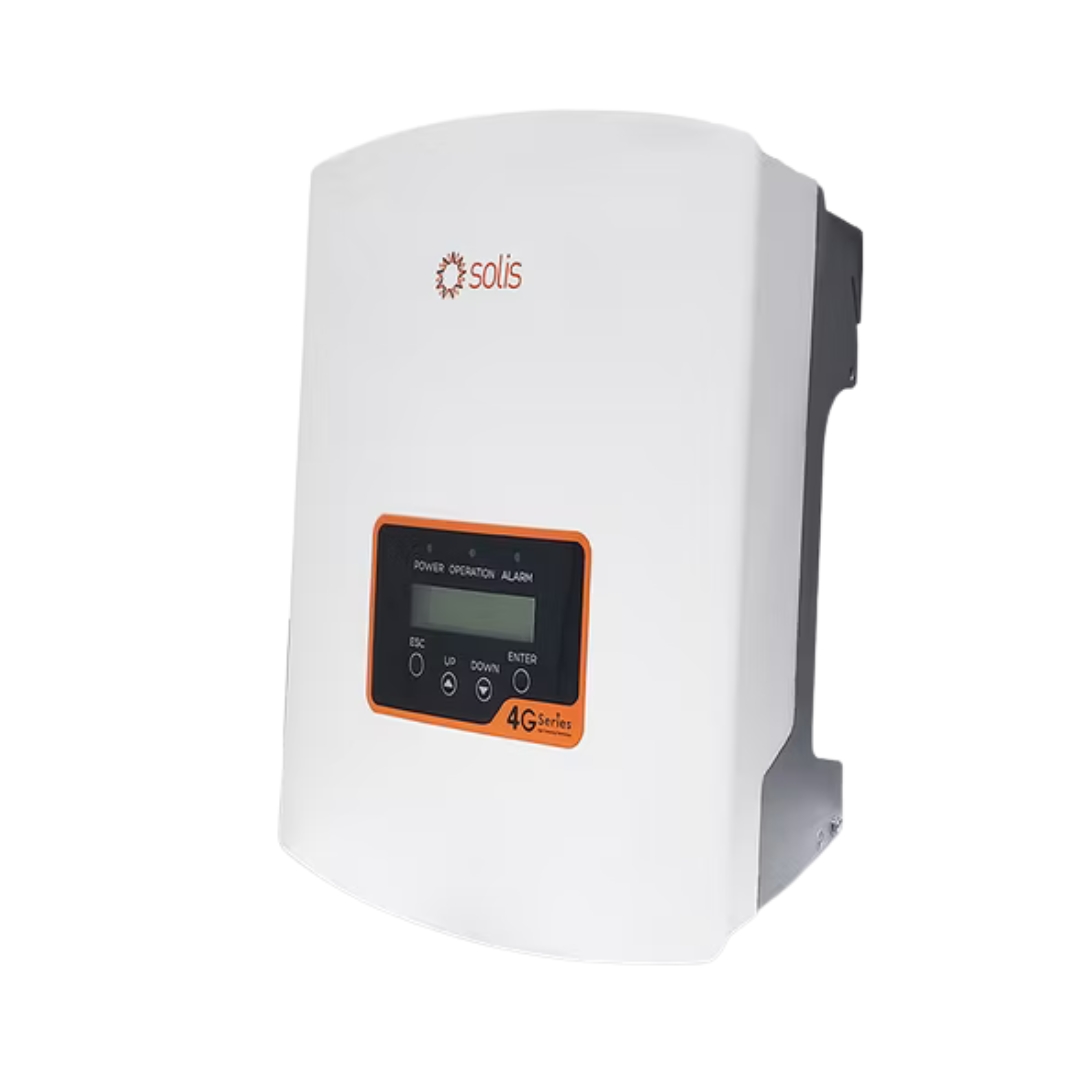

SOLIS ( ONGRID ) 10 KW

🔧 Key Specifications

• Model: Solis-3P10K-4G

• Rated Output Power: 10,000 W

• Maximum Output Power: 11,000 W

• Maximum DC Input Power: 12,000 W

• MPPT Voltage Range: 160–850 V

• Start-Up Voltage: 180 V

• Maximum Input Voltage: 1,000 V

• Number of MPPTs: 2

• Maximum Input Current per MPPT: 11 A

• Rated Grid Voltage: 400 V

• Rated Grid Frequency: 50/60 Hz

• Operating Temperature Range: -25°C to +60°C

• Ingress Protection: IP65

• Dimensions: 310 × 563 × 219 mm

• Weight: 18 kg

• Efficiency: Max. 98.7%, European 98.1%
