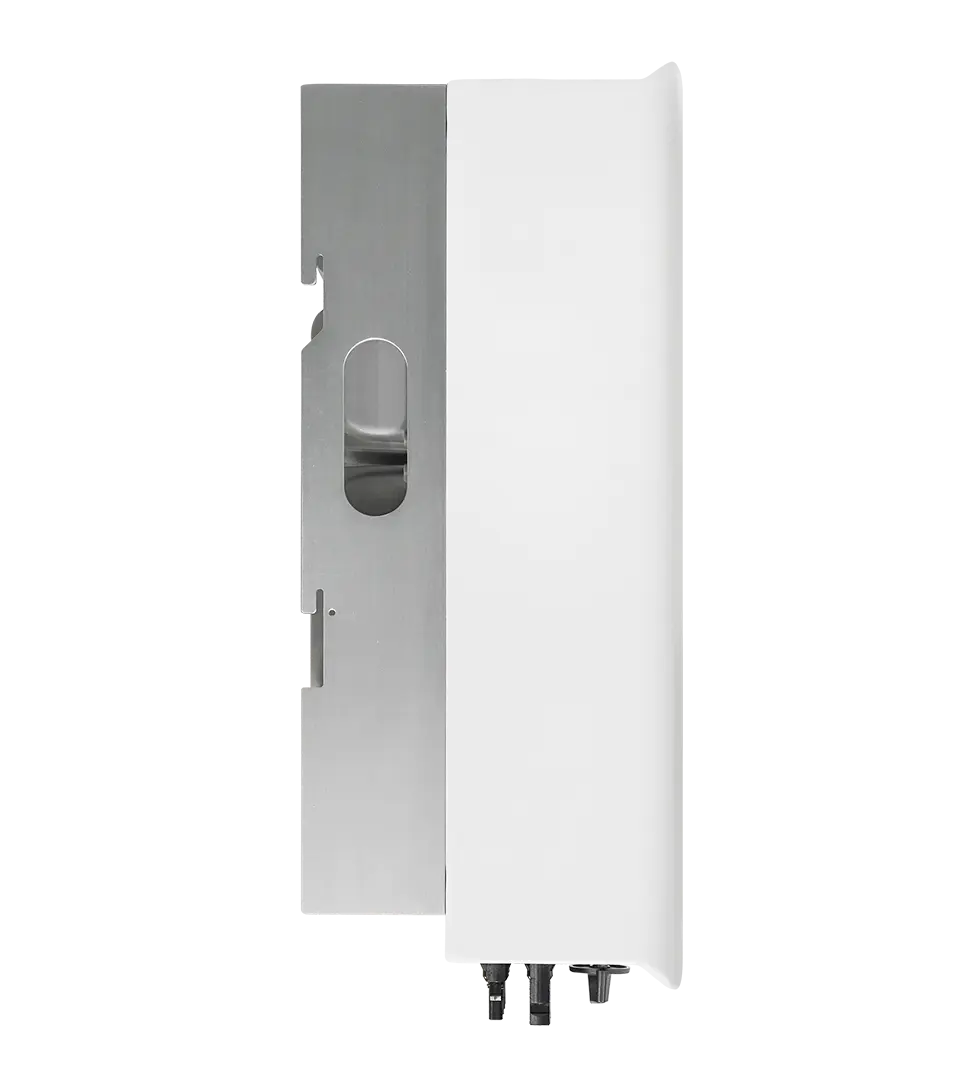

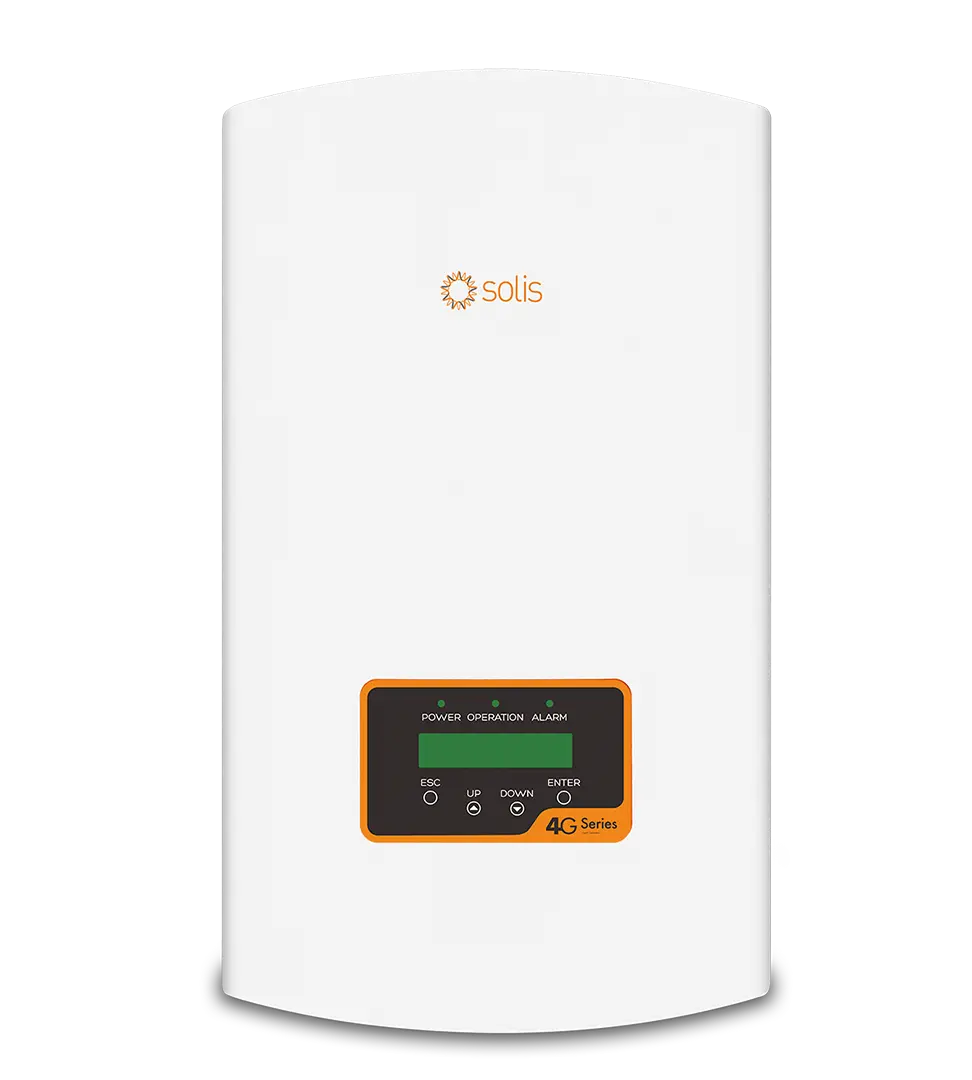

SOLIS ( ONGRID ) 15 KW

🔧 Key Specifications

• Model: Solis-3P15K-4G-LV

• Rated Output Power: 15,000 W

• Maximum Output Power: 16,500 W

• Maximum DC Input Power: 22,500 W

• MPPT Voltage Range: 160–850 V

• Start-Up Voltage: 180 V

• Number of MPPTs: 2

• Maximum Input Voltage: 1,000 V

• Maximum Input Current per MPPT: 32 A

• Rated Grid Voltage: 380 V / 400 V

• Rated Grid Frequency: 50 Hz / 60 Hz

• Efficiency: Up to 98.7%

• Ingress Protection: IP65 (suitable for outdoor installations)

• Dimensions: Approximately 530 × 700 × 356.5 mm

• Weight: Approximately 58.2 kg

• Communication Interfaces: RS485, Wi-Fi/LAN/GPRS (optional)
