SQYUARE POWER 6 KW
🔋Key Features
- Hybrid Operation
- High PV Input Voltage Range
- Dual MPPT Support
- Built-in WiFi & Communication Ports
- Overload & Short Circuit Protection
Description

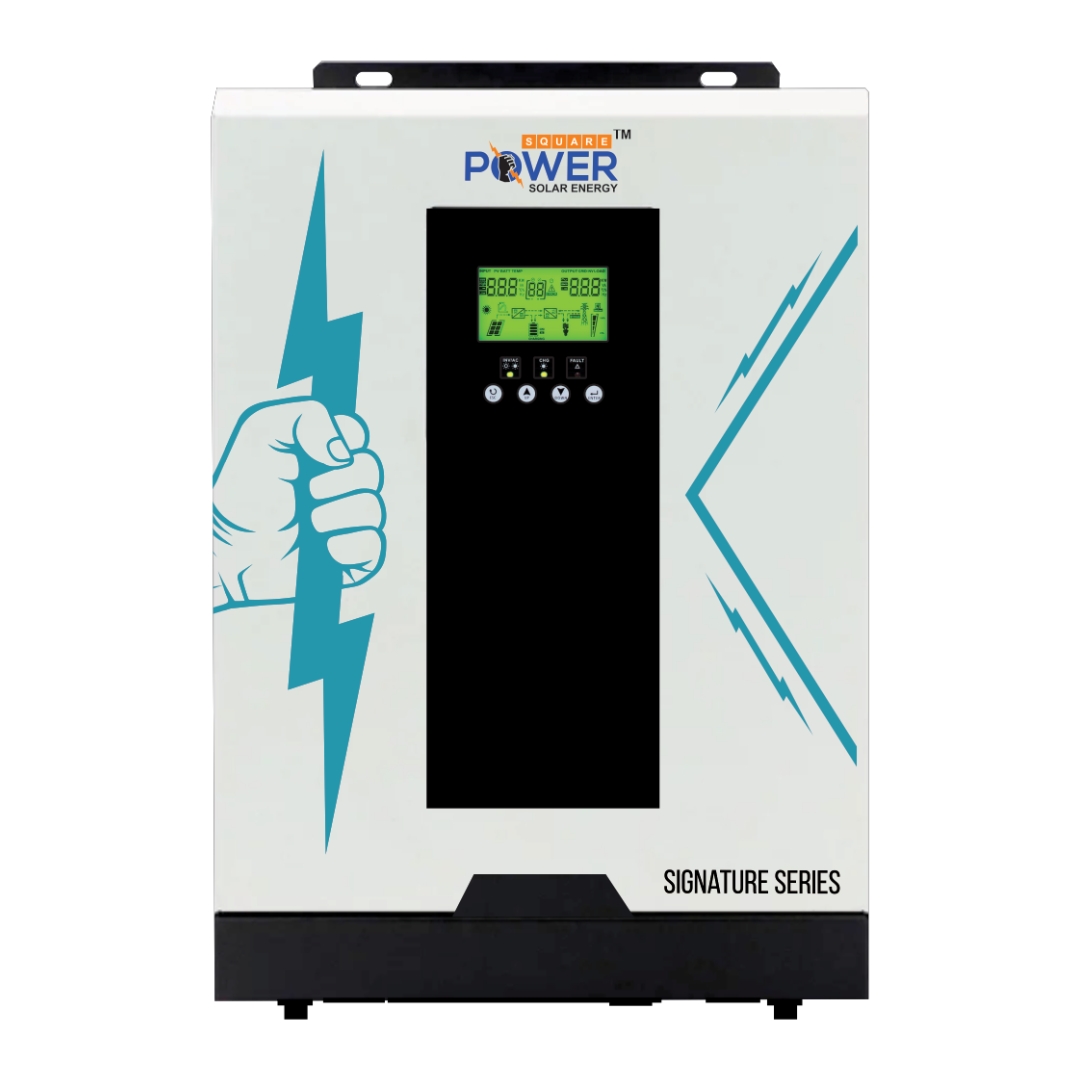

The Power Square 6kW Hybrid Inverter is a reliable and efficient energy solution, ideal for enhancing the performance and reliability of your solar power system. Its hybrid functionality, robust protection features, and smart monitoring capabilities make it a valuable addition to any solar installation.
If you need further assistance in selecting compatible batteries or have questions about installation and compatibility, feel free to ask!
🔧 Key Specifications
-
Rated Power: 6,000 W (6 kW)
-
Inverter Type: Hybrid (supports solar, battery, and grid integration)
-
PV Input Voltage Range: 120 VDC – 430 VDC
-
Maximum PV Input Current: 27 A
-
Battery Voltage: 48 VDC
-
Output Voltage: 230 VAC ± 5%
-
Frequency Range: 50 Hz/60 Hz (auto-sensing)
-
Surge Power: 12,000 VA
-
Waveform: Pure Sine Wave
-
Efficiency (Peak): Up to 93%
-
Transfer Time: 10 ms (for PCs); 20 ms (for home appliances)
-
Communication Interfaces: RS485, CAN, USB, and built-in WiFi for mobile monitoring
-
Display: 4.3" colored LED touch screen
-
Protection Rating: IP21 (suitable for indoor installations)
-
Operating Temperature Range: 0°C to 50°C
-
Dimensions: Approximately 120 mm × 295 mm × 468 mm
-
Weight: Approx. 12 kg
